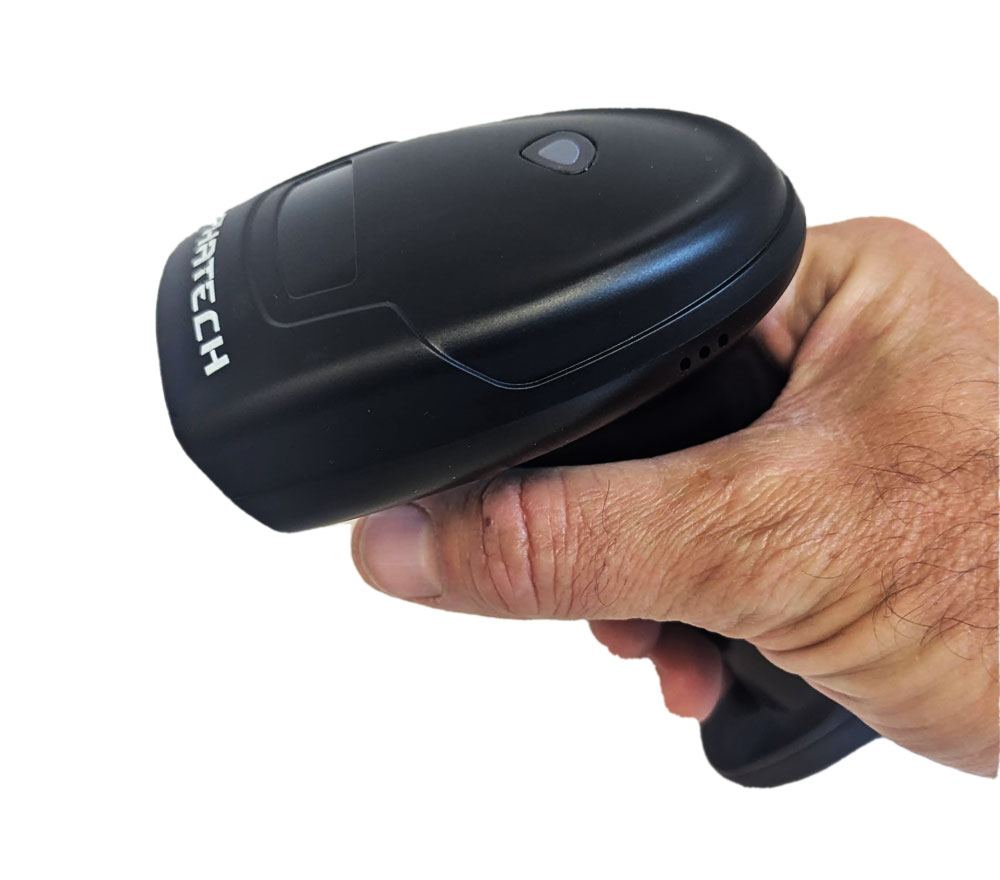

Handheld Scanner Bluetooth
Handheld QR 1D/2D desktop barcode scanner for school cafeterias
(Wireless Bluetooth model with free complementary stand)

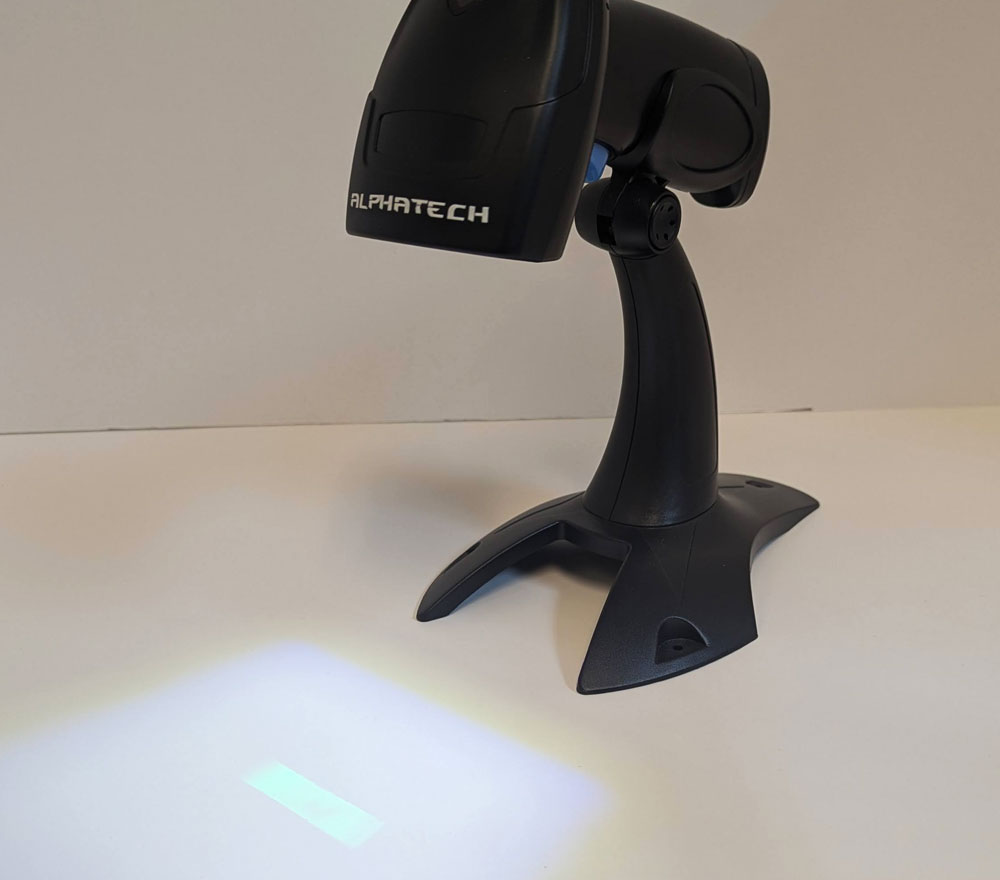

Alpha-202-BT wireless school lunch barcode scanners can be hand-held or mounted on the free complementary stand for hands-free operation.
Make School Lunch Lines Move Faster With Our
Bluetooth Handheld Barcode Scanner!
Bluetooth Barcode Scanner Specifications
Model
- Alpha-202-BT .
Features
- Multi languages.
- Support online full ASCII character editing.
- Interface: Bluetooth-HID/Bluetooth+2.4G+USB.
Regulatory
- CE, FCC, RoHS.
Environment
- Operating Temperature：-20℃ to 50℃.
- Storage Temperature: -40°C to 70°C.
- Humidity：5% – 95% non-condensing.
- Operating Humidity: 5% to 90% Non-Condensing.
- Drop test ：1.5m.
Specifications
- Working current：3.3Vx210mA (idle:0mA).
- Working time：1 to 3 days .
- Charging ：5V-400 mA .
- Communication：Bluetooth≤50m，2.4G≤100m.
- Storage：3670 barcodes (EAN13) .
- Light aimer：617nm LED .
- illumination：6500K LED .
- Sensor：640×480 CMOS.
- Indication：Buzzer & LED.
- Trigger ：Button，Continuous，Auto-sense.
- Resolution：1D≥4mil，2D≥10mil.
- Scanning angle：rotation 360°，inclination ± 55°，declination ± 55°.
- FOV：Horizontal 34° , Vertical 28°.
- Printing Contract : ≥ 20%.
- Anti-interference：100000 Lux Max
- Decode Ranges：(250Lux)
13mil-EAN13（13bytes） 50-200mm
5mil-Code39（10bytes） 40-90mm
20mil-QR（16bytes） 25-240mm
6.67mil-PDF417（7bytes） 30-130mm - Decode Capability：
1D：UPC, EAN, ISBN, ISSN, Code 128, Code 39, Code 32, Code 93, Interleaved 2 of 5, industrial 2 of 5, Matrix 2 of 5, IATA 2 of 5, MSI Plessey, Code 11，Codabar, GS1 Data Bar.
2D：QR, Micro QR Data Matrix，PDF417，MicroPDF417，Aztec, Maxi Code - LED life：100000 hours – Button life ：1000,000 times.
Accessories

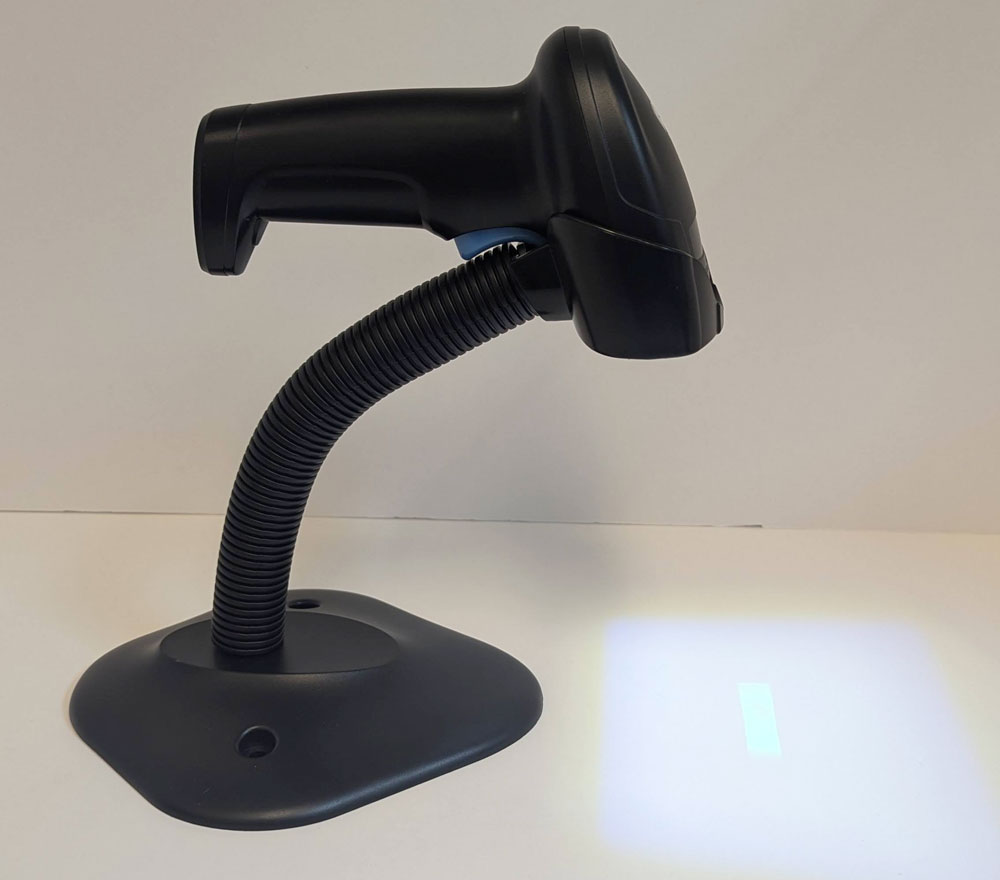

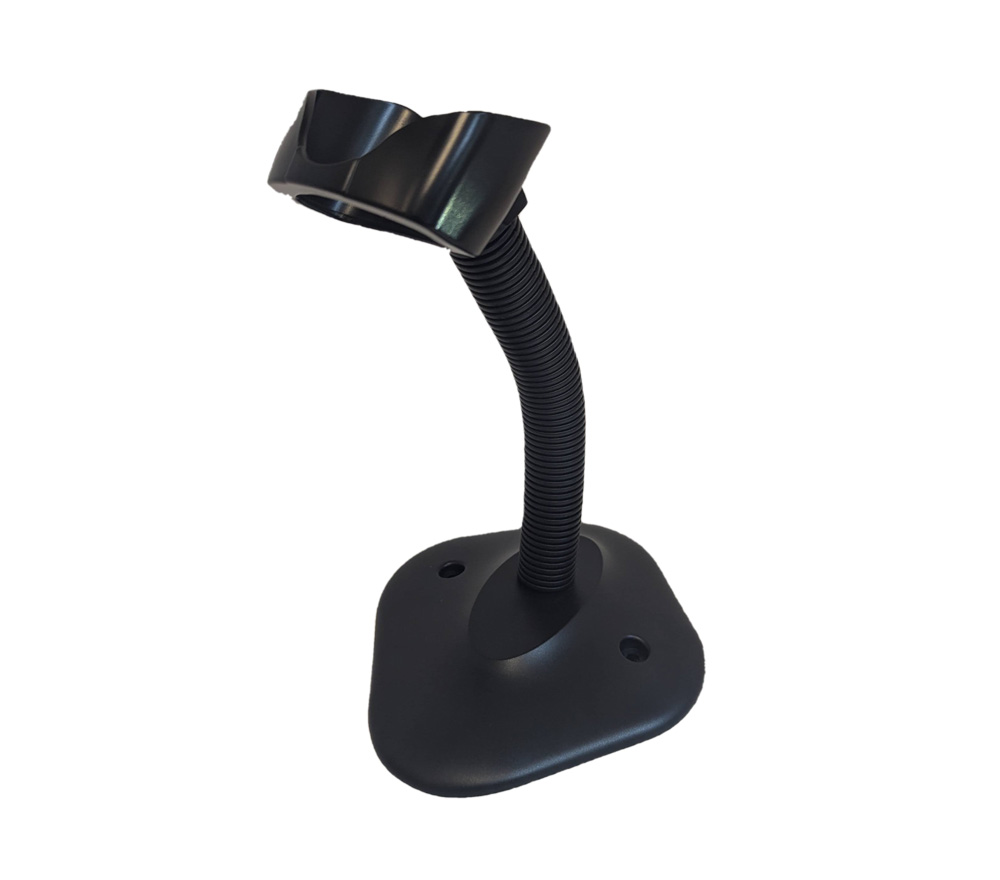

Barcode Scanner Stand with Flexible Arm
Barcode scanner stand with flexible arm provides a flexible base for scanner and allows direct hands-free scanning.

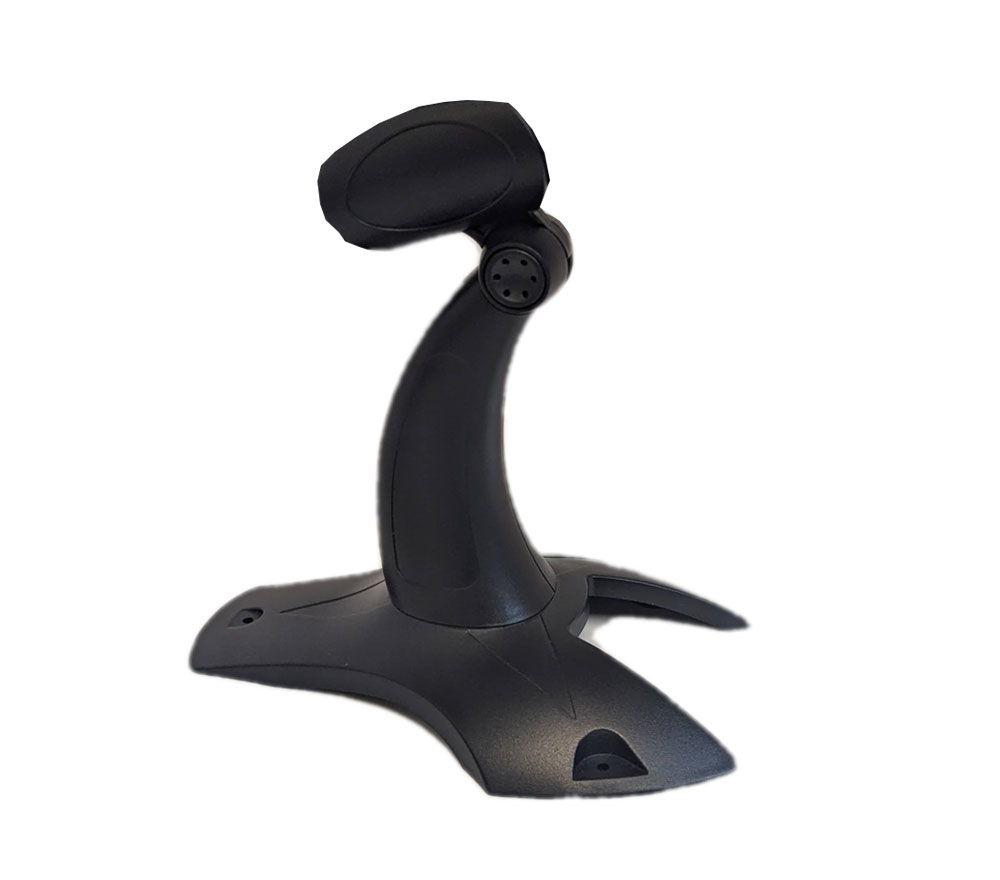

Barcode Scanner Stand with Fixed Arm
Barcode scanner stand with fixed arm provides a steady base for scanner and allows direct hands-free scanning.
Our Pledge to Quality
Warranty
Our Pin Pads are covered by a standard 1-year warranty + up to 3 year optional extended warranty available upon request.
FCC Approved
Our cafeteria keypad components are FCC approved.
US Company
Our keypads are designed, assembled in the US, ship from our warehouse in Irvine, California.
